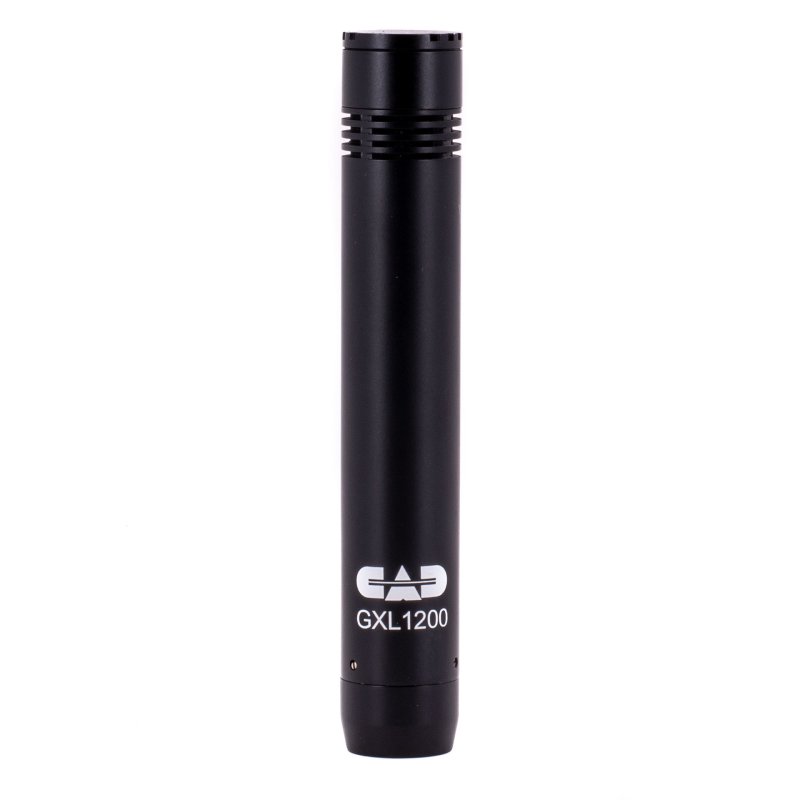

Cardioid Condenser

Model: GXL1200
Packaged in a small, rugged, all metal housing, the GXL1200 Condenser microphone provides a transparent sound reproduction. The transformerless design of this instrument microphone allows it to have low distortion and optimum low end frequency response. The GXL1200's size, accurate sound reproduction, and high SPL capability, make this a great choice for miking overheads, high hats, cymbals, woodwinds and stringed instruments.
starting at:
$39.99
Overview
Details & Reviews
Specs
Downloads

Overview

Operating Principle: Externally-biased condenser Polar Pattern: Cardioid Frequency Response: 30Hz to 20KHz Sensitivity: -36dBV (16mV) @ 1 Pa Impedance: 100 ohms

Details

Description:

Packaged in a small, rugged, all metal housing, the GXL1200 Condenser microphone provides a transparent sound reproduction. The transformerless design of this instrument microphone allows it to have low distortion and optimum low end frequency response. The GXL1200's size, accurate sound reproduction, and high SPL capability, make this a great choice for miking overheads, high hats, cymbals, woodwinds and stringed instruments.

Generating Element: Externally Biased Condenser
Polar Pattern: Unidirectional (Cardioid)
Frequency Response: 30 Hz - 20 kHz
Sensitivity: -56dB 0dB=1V/uBar @ 1kHz
Impedance: Low (Less than 200 Ohms)
Equivalent Noise Level: +17dB (A-weighted)
Power: P24V or P48V Phantom Power
Connector: 3 pin XLR
Phasing: Positive pressure on diaphragm generates a positive voltage on pin
#2 relative to pin #3
Dimensions: See Drawing
Weight: 126 Grams
