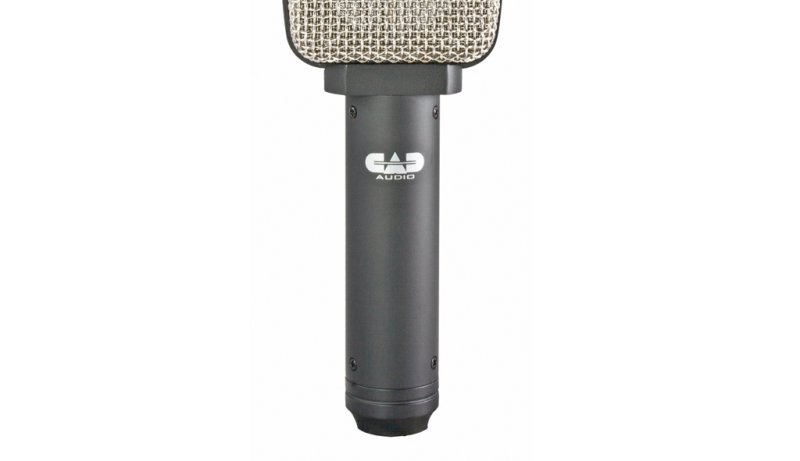

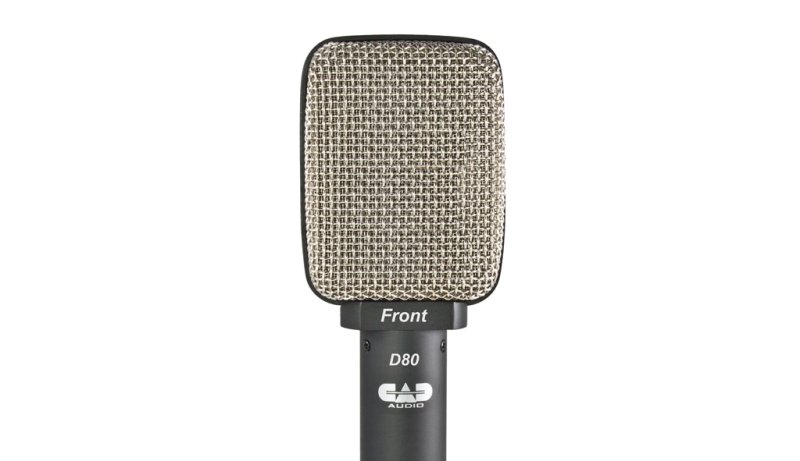

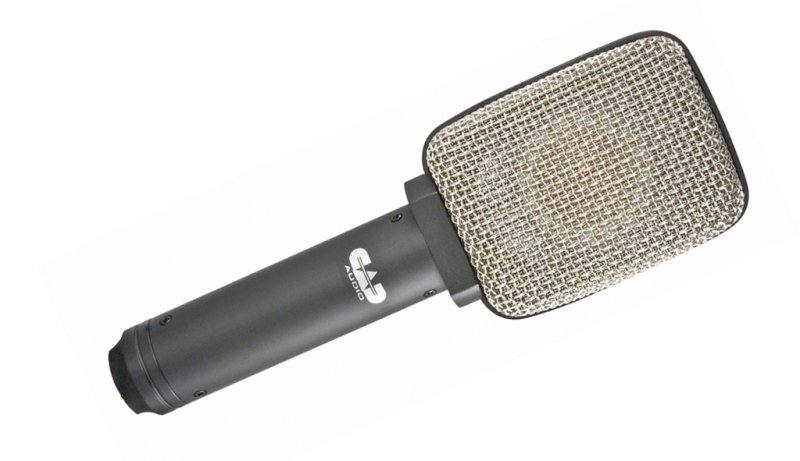

Side Address Large Diaphragm Super Cardioid Dynamic Cabinet/Percussion Microphone

Model: D80
The CADLive: D80 represents a durable, easy to place design possessing a unique sound profile. Used individually the CADLive D80 may be used to create the custom sound you wish from your guitar cabinets and percussion. D80 is a Large Diaphragm Moving Coil Dynamic that delivers a reminiscent, yet updated sound profile you would look for in a dynamic microphone. The D80 has a tight Super-Cardioiod polar pattern while supplying a hot output — ensuring outstanding performance on even the loudest stages.
Reviews: Pro Sound Review
starting at:
$49.99
Overview
Details & Reviews
Specs
Downloads

Overview

Tradition Dynamic Guitar Sound Frequency Response 50Hz-18KHz Sensitivity -48dBv (4.0mV) @ 1Pa

Details

Description:

The CADLive: D80 represents a durable, easy to place design possessing a unique sound profile. Used individually the CADLive D80 may be used to create the custom sound you wish from your guitar cabinets and percussion. D80 is a Large Diaphragm Moving Coil Dynamic that delivers a reminiscent, yet updated sound profile you would look for in a dynamic microphone. The D80 has a tight Super-Cardioiod polar pattern while supplying a hot output — ensuring outstanding performance on even the loudest stages.

Operating Principle….................... Moving Coil Dynamic

Polar Pattern…...........................................Super-cardioid
Frequency Response…................................50Hz -18KHz
Sensitivity…................................ -48dBV (4.0mV) @ 1 Pa
Impedance…..................................................... 370 ohms
Max SPL…................................................. 132dB @100Hz
Weight….....................................................8.0oz [0.23Kg]
RoHS….............................................................. Compliant
