Overview

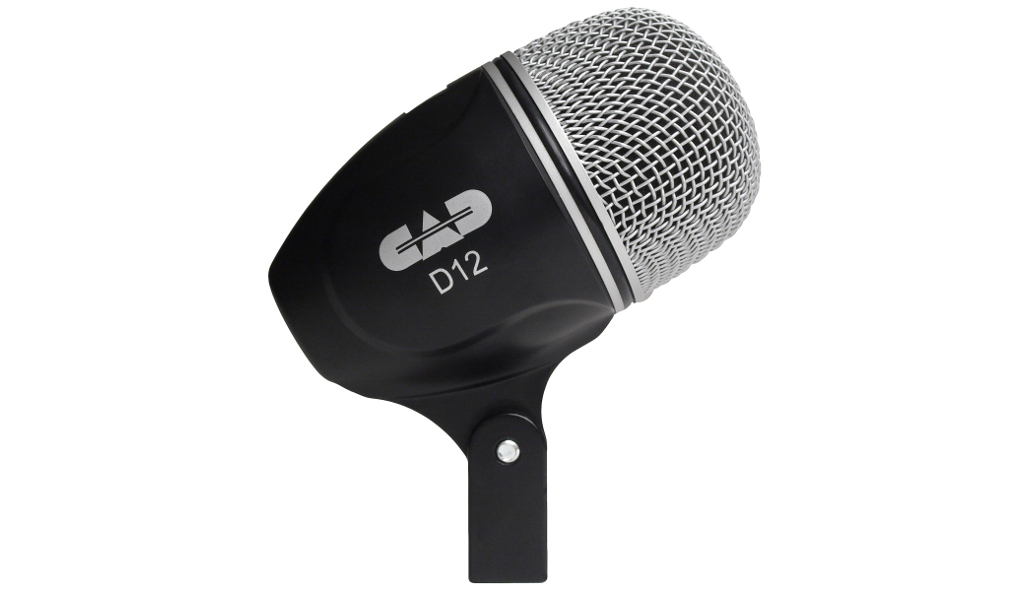

Neodymium Cardioid Dynamic Microphone
The D12 is a cardioid neodymium dynamic microphone specifically designed
for bass drum and other low frequency sources. The D12’s wide dynamic
range and fast transient response produces an open, detailed sound with
extra punch when miking kick drums, large percussive instruments, and bass
guitar amplifiers. All metal housing with integrated mic clip. Available in
Stage Series Drum Packs or separately.

Details

The D12 is a large-diaphragm,
neodymium, cardioid, moving-coil
dynamic microphone specifically
designed and carefully equalized for kick
drum capture and reinforcement. Special
attention has been given to enhancing
“thump”, “crack”, and “click”while
reducing “boxiness”. Neodymium
magnetics allow reduced coil mass
for transient agility and impedance
reduction. Although designed for kick
drum, excellent results are also obtained
when used on floor toms, electric guitar
and electric bass cabinets.
The die-cast metal body and hardened
protective steel screen provide rugged
durability. Integrated swivel mount is
included.

​Operating Principle: Moving-coil dynamic
Polar Pattern: Cardioid
Frequency Response: 30Hz -12KHz
Sensitivity: 66dBV (0.5mV) @ 1 Pa
Impedance: 60 ohms
Weight: 1lb 4oz [0.56Kg]
RF Immunity: Meets 1 or exceeds EN55103-2, E1-E4
RoHS: Compliant
