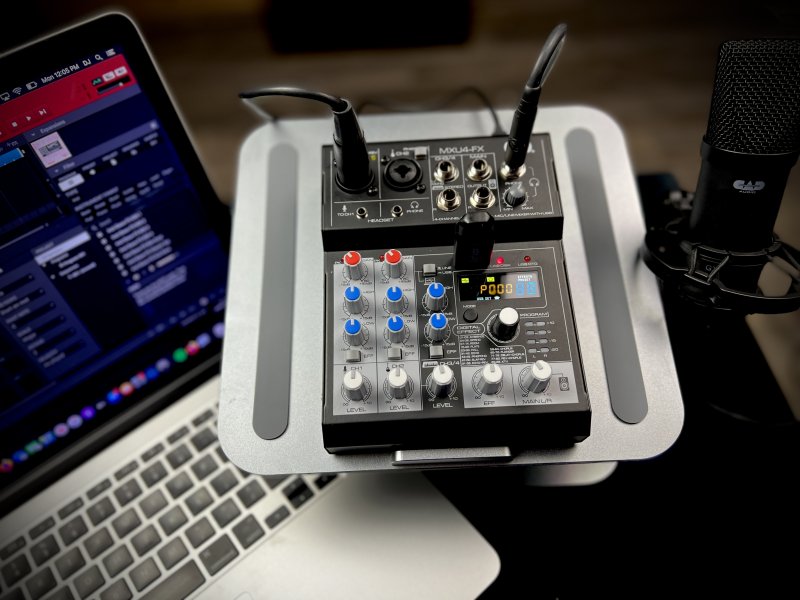

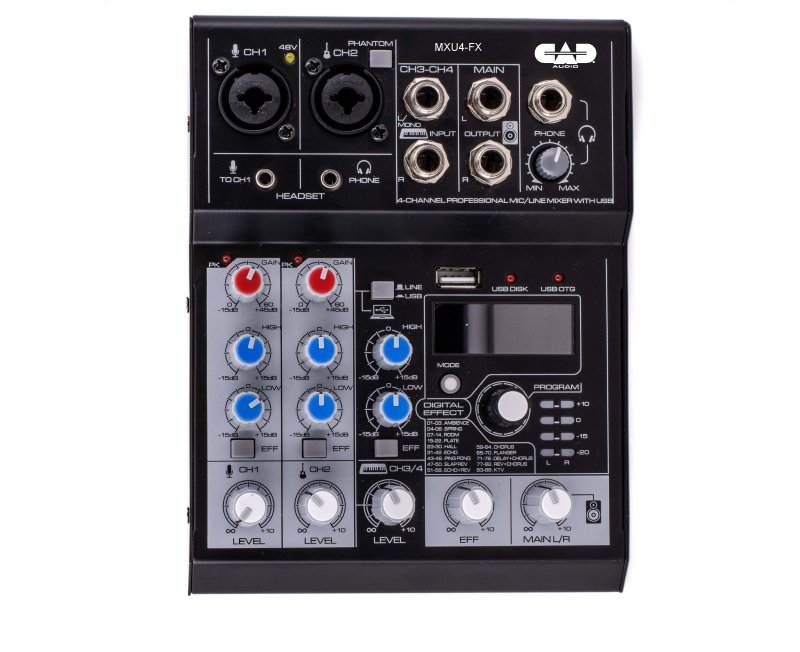

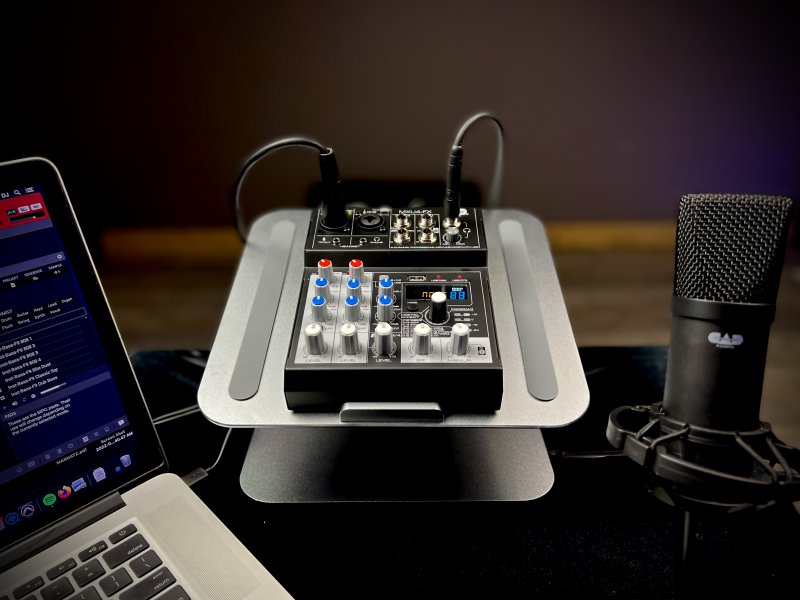

The CAD Audio MXU4-FX is a multipurpose 4 channel (2mic/line, 2 mono/1 stereo line) analog mixer with a built-in USB interface and digital effects processor. On-board 2-band EQ and +48V phantom power make it an ideal and compact option for live performance, broadcasting, podcasting or home recording.
Features • USB output connects to computer for easy recording or podcasting • USB input for playing MP3/WAV files from a flash drive • +48V phantom power for use with condenser microphones • 2-band EQ per channel • Built-in effects processor provides 88 presets for chorus, delay, reverb and more
Specifications
Model #: MXU4-FX
Inputs: 2 XLR mic/line combo, 2 mono/1 stereo line, 1 USB
Outputs: ¼” TRS, balanced
Mic E.I.N (20Hz – 20kHz): -129.5dBu @ 150 Ω source resistance
Distortion (THD): 0.005%
Noise:
Stereo out (faderat 0 dB): -88 dBu
Stereo out (fader at ∞): -100 dBu
Headphone out (fader at ∞): -88 dBu
Signal to noise ratio:
Mic input: 81dB
Line input: 78dB
Attenuation (Crosstalk):
Channel gain @ 0: -82 dBu
